Training Failure Metrics

Imports

import pandas as pd
from os import listdir, getcwd
from os.path import isfile, join
import seaborn as sns
import matplotlib.pyplot as plt
import json
import numpy as np
import itertools
import matplotlib.patches as mpatches
pd.options.mode.chained_assignment = None  # default='warn'

Data Import

This notebook can be used to compute and average results across multiple runs, simply adapt the run_folders.

run_folders = ['run_1']

dfs = []
for folder in run_folders:
    run_folder = folder + "/client_output/"
    file_list = [f for f in listdir(run_folder) if isfile(join(run_folder, f))]
    print("Loaded", file_list, "from", run_folder)
    for i in range(len(file_list)):
        file_dfs = []
        with open(run_folder + file_list[i]) as f:
            for line in f.readlines():
                json_data = pd.json_normalize(json.loads(line))
                file_dfs.append(json_data)
        file_df = pd.concat(file_dfs)
        file_df["src"] = file_list[i].replace(".json", "")
        file_df["run"] = folder
        dfs.append(file_df)
df = pd.concat(dfs)

Loaded ['Random.json', 'FedCS.json', 'ActiveFL.json', 'PowD.json', 'CEP.json'] from run_1/client_output/

Dataset Preparation

df['server_round'] = np.where(df['server_round'] == max(df['server_round']), 0, df['server_round'])

df['reason'] = df['reason'].fillna("success")

DataFrame Preview

df.sample(2)

	server_round	client_name	actual_execution_time	execution_time	upload_time	total_time	status	current_timestamp	state.cpu	state.ram	...	state.performance_tier	state.expected_execution_time	state.i_performance_factor	state.client_name	train_output.accuracy	train_output.avg_epoch_loss	train_output.no_samples	reason	src	run
0	1	slow-sump	NaN	88.0	49.450109	120.000000	fail	2023-08-11 16:04:18.782893	8	32	...	2	80	1.10	slow-sump	NaN	NaN	NaN	timeout failure	Random	run_1
0	10	level-platform	1.203034	92.0	14.012158	106.012158	success	2023-08-11 17:53:05.487195	8	32	...	2	80	1.15	level-platform	[0.44468546637744033, 0.7613882863340564, 0.91...	[0.05063865914003451, 0.025299487623371943, 0....	15.0	success	ActiveFL	run_1

2 rows × 22 columns

Generate average failures per round table

df_gen = df[['server_round', 'src', 'run', 'reason']]
df_gen = df_gen.groupby(['src', 'reason', 'run']).count()
df_gen['server_round'] = df_gen['server_round'] / 30
df_gen = df_gen.groupby(['src', 'reason']).mean().reset_index()
df_gen = df_gen.pivot_table(index="src",columns="reason", values="server_round").reset_index()
df_gen['Total Failures'] = df_gen['reliability failure'] + df_gen['timeout failure']
df_gen['Total Clients'] = df_gen['Total Failures'] + df_gen['success']
df_gen['Total Clients'] = df_gen['Total Clients'].astype(int)
df_gen.columns = ['Strategy', 'Reliability Failures', 'Successful Participations', 'Timeout Failures', 'Total Failures', 'Total Clients']
cols = ['Strategy', 'Successful Participations', 'Reliability Failures', 'Timeout Failures', 'Total Failures', 'Total Clients']
df_gen = df_gen[cols]
df_gen
# df_gen.to_latex('mean_failures_per_round.tex',
#                   formatters={"name": "{:.2f}".format},
#                   float_format="{:.2f}".format,
#                    index=None)

	Strategy	Successful Participations	Reliability Failures	Timeout Failures	Total Failures	Total Clients
0	ActiveFL	18.233333	5.800000	25.966667	31.766667	50
1	CEP	38.833333	5.566667	5.600000	11.166667	50
2	FedCS	24.000000	5.333333	20.666667	26.000000	50
3	PowD	20.166667	4.266667	25.566667	29.833333	50
4	Random	21.266667	5.233333	23.500000	28.733333	50

Failures per Round Diagram

nice_name_map = {'reliability failure': 'Reliability Failure', 'timeout failure':'Timeout', 'success': 'Successful Completion'}
df_gen = df[['server_round', 'src', 'run', 'reason']]
df_gen['reason'] = df_gen['reason'].apply(lambda x: nice_name_map[x])
df_gen = df_gen.groupby(['src', 'reason', 'run']).count()
df_gen['server_round'] = df_gen['server_round'] / len(df['server_round'].unique())
df_gen = df_gen.groupby(['src', 'reason']).mean().reset_index()
df_gen['Status'] = pd.Categorical(df_gen['reason'], ['Reliability Failure', 'Timeout', 'Successful Completion'])
df_gen

	src	reason	server_round	Status
0	ActiveFL	Reliability Failure	5.800000	Reliability Failure
1	ActiveFL	Successful Completion	18.233333	Successful Completion
2	ActiveFL	Timeout	25.966667	Timeout
3	CEP	Reliability Failure	5.566667	Reliability Failure
4	CEP	Successful Completion	38.833333	Successful Completion
5	CEP	Timeout	5.600000	Timeout
6	FedCS	Reliability Failure	5.333333	Reliability Failure
7	FedCS	Successful Completion	24.000000	Successful Completion
8	FedCS	Timeout	20.666667	Timeout
9	PowD	Reliability Failure	4.266667	Reliability Failure
10	PowD	Successful Completion	20.166667	Successful Completion
11	PowD	Timeout	25.566667	Timeout
12	Random	Reliability Failure	5.233333	Reliability Failure
13	Random	Successful Completion	21.266667	Successful Completion
14	Random	Timeout	23.500000	Timeout

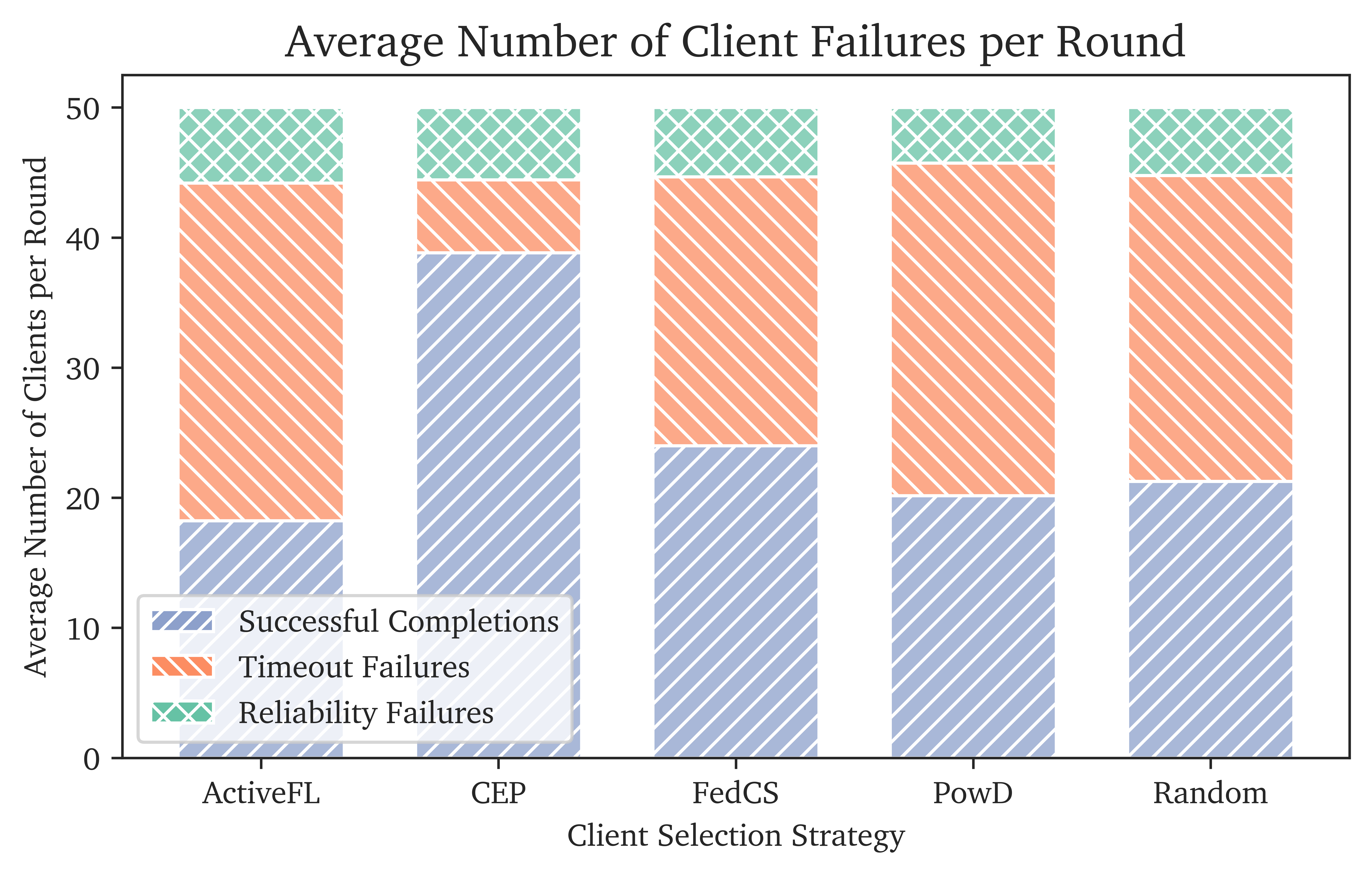

plt.figure(figsize=(7,4), dpi=1200)
sns.set_style("ticks")
plt.rcParams['font.family'] = "serif"
plt.rcParams['font.serif'] = "Charter"
ax = sns.histplot(x = 'src', hue = 'Status',multiple = 'stack', weights="server_round", data=df_gen,shrink = 0.7, palette="Set2")
ax.set_xlabel("Client Selection Strategy")
ax.set_ylabel("Average Number of Clients per Round")
no_status = 5
hatches = itertools.cycle(['///', '\\\\\\', 'XXX'])
for i, bar in enumerate(ax.patches):
    if i % no_status == 0:
         hatch = next(hatches)
    bar.set_hatch(hatch)
colors = sns.color_palette("Set2")
circ1 = mpatches.Patch(facecolor=colors[2], hatch='////',label='Successful Completions')
circ2= mpatches.Patch(facecolor=colors[1], hatch=r'\\\\',label='Timeout Failures')
circ3 = mpatches.Patch(facecolor=colors[0], hatch='XXX',label='Reliability Failures')

ax.legend(handles = [circ1,circ2,circ3],loc=0)
ax.set_title("Average Number of Client Failures per Round", fontsize='x-large')
plt.show()
