Fairness metrics

Imports

import pandas as pd
from os import listdir, getcwd
from os.path import isfile, join
import seaborn as sns
import matplotlib.pyplot as plt
import ast

Data import

The import script is designed to import and average multiple runs. You can adjust your run folders accordingly.

run_folders = ['run_1']

dfs = []
for folder in run_folders:
    run_folder = folder + "/validation/"
    file_list = [f for f in listdir(run_folder) if isfile(join(run_folder, f))]
    print("Loaded", file_list, "from", run_folders)
    for i in range(len(file_list)):
        fname = run_folder + file_list[i]
        df_temp = pd.read_csv(fname)
        df_temp["src"] = file_list[i].replace(".csv", "")
        df_temp["run"] = folder
        dfs.append(df_temp)
df = pd.concat(dfs)

Loaded ['ActiveFL.csv', 'CEP.csv', 'Random.csv', 'FedCS.csv', 'PowD.csv'] from ['run_1']

Dataframe Preview

df

	round	client	loss	acc	total	correct	class_accuracy	src	run
0	0	burning-field	NaN	0.117647	51	6	[0.11764705926179886, 0.0, 0.0, 0.0, 0.0, 0.0,...	ActiveFL	run_1
1	0	buoyant-eaves	NaN	0.117647	51	6	[0.11764705926179886, 0.0, 0.0, 0.0, 0.0, 0.0,...	ActiveFL	run_1
2	0	deafening-adhesive	NaN	0.117647	51	6	[0.11764705926179886, 0.0, 0.0, 0.0, 0.0, 0.0,...	ActiveFL	run_1
3	0	swarm-canity	NaN	0.117647	51	6	[0.11764705926179886, 0.0, 0.0, 0.0, 0.0, 0.0,...	ActiveFL	run_1
4	0	amiable-wolverine	NaN	0.117647	51	6	[0.11764705926179886, 0.0, 0.0, 0.0, 0.0, 0.0,...	ActiveFL	run_1
...	...	...	...	...	...	...	...	...	...
14995	29	cold-reef	0.026430	0.745098	51	38	[0.8333333134651184, 1.0, 0.6666666865348816, ...	PowD	run_1
14996	29	blue-bat	0.036713	0.686275	51	35	[1.0, 1.0, 1.0, 0.4285714328289032, 0.33333334...	PowD	run_1
14997	29	damp-actuary	0.035672	0.627451	51	32	[1.0, 0.8888888955116272, 0.6000000238418579, ...	PowD	run_1
14998	29	local-yield	0.025788	0.745098	51	38	[0.8333333134651184, 0.8888888955116272, 0.857...	PowD	run_1
14999	29	vivid-certificate	0.040833	0.607843	51	31	[0.75, 1.0, 0.5, 0.3333333432674408, 0.5, 0.66...	PowD	run_1

75000 rows × 9 columns

Client Fairness

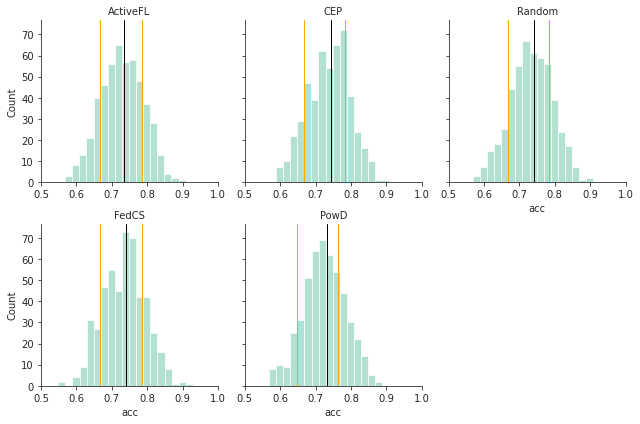

Final Round Fairness Histograms

df_plot = df[df['round'] == max(df['round'])][['acc', 'src', 'client']]
plt.figure(figsize=(7,4), dpi=1200)
sns.set_style("ticks")
g = sns.FacetGrid(df_plot, col="src", col_wrap=3, sharey='row', sharex=False, xlim=(0.5,1.0))
g.map(sns.histplot, "acc", bins=10, binwidth=0.02, palette="Set2", hue=len(df.index))
g.set_titles("{col_name}")
for (row, col, hue_idx), data in g.facet_data():
    if not data.values.size:
        continue
    ax = g.facet_axis(row, col)
    ax.axvline(data["acc"].mean(), c="k", ls="-", lw=1, label="Mean")
    ax.axvline(data["acc"].quantile(.1), c="orange", ls="-", lw=1)
    ax.axvline(data["acc"].quantile(.75), c="orange", ls="-", lw=1)
plt.show()

png

Fairness Boxplots

df_plot = df[df['round'] == max(df['round'])][['acc', 'src', 'client']]
df_plot = df_plot.groupby(["client", "src"]).mean().reset_index()
plt.figure(figsize=(7,4), dpi=1200)
sns.set_style("ticks")
plt.rcParams['font.family'] = "serif"
plt.rcParams['font.serif'] = "Charter"
ax = sns.boxplot(df_plot, x='acc', y='src', palette="Set2")
ax.set_xlabel("Accuracy")
ax.set_ylabel("Strategy")
ax.set_title("Accuracy Distribution for different Selection Algorithms", fontsize="x-large")
plt.show()

png

Class Fairness

Define CIFAR-10 Classes

classes = (
            "plane",
            "car",
            "bird",
            "cat",
            "deer",
            "dog",
            "frog",
            "horse",
            "ship",
            "truck",
        )

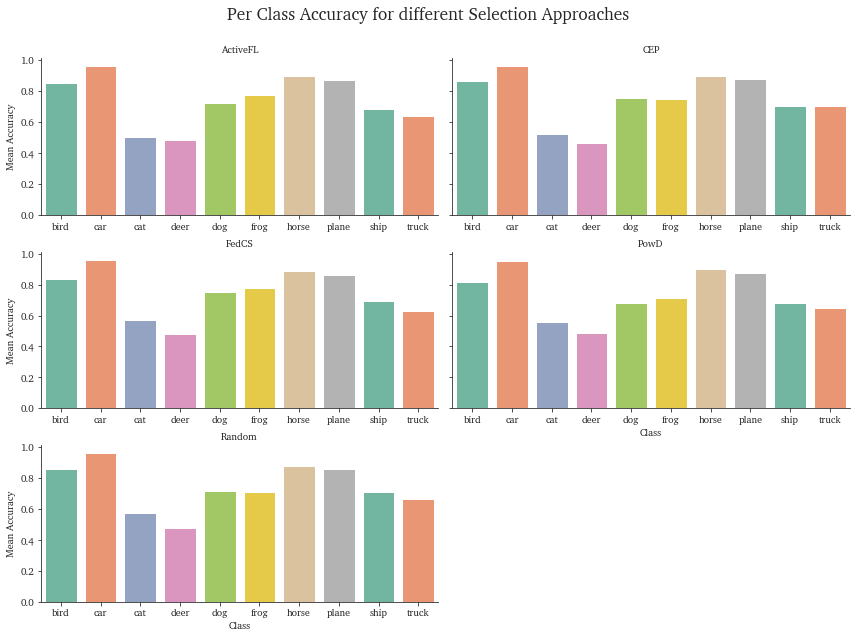

Class Accuracy Plots

df_plot = df[df['round'] == max(df['round'])][['class_accuracy', 'src', 'run']]
df_plot['class_accuracy']=df_plot['class_accuracy'].apply(lambda x: ast.literal_eval(x))
df_temps = []
for i in df_plot['src'].unique():
    df_temp = pd.DataFrame(df_plot[df_plot['src'] == i]['class_accuracy'].to_list(), columns=classes)
    df_temp['src'] = i
    df_temps.append(df_temp)
df_plot = pd.concat(df_temps).groupby(['src']).mean().reset_index()
df_plot = df_plot.melt(id_vars=['src'], var_name='class', value_name='acc')
df_plot['class'] = df_plot['class'].astype('category')
df_plot['color'] = 1

plt.figure(figsize=(7,4), dpi=1200)
sns.set_style("ticks")
plt.rcParams['font.family'] = "serif"
plt.rcParams['font.serif'] = "Charter"
axs = sns.catplot(
    df_plot, x="class", y='acc', col="src", height=3, aspect=2, col_wrap=2,
    kind="bar", margin_titles=True, palette="Set2", legend=None, sharex=False
)
axs.set_titles("{col_name}")
axs.set_xlabels("Class")
axs.set_ylabels("Mean Accuracy")
axs.fig.suptitle("Per Class Accuracy for different Selection Approaches", fontsize='xx-large', fontproperties={'family': 'Charter'})
axs.fig.subplots_adjust(top=0.9)
plt.show()

png
