Dirichlet

The second type is a Dirichlet distribution that allocates a different number of samples to each client. In this case, each client receives a different percentage of the whole dataset. In total, the number of samples distributed is equal to the length of the dataset. Once again, samples are selected with replacement from the entire training set.

Parameters

Key	Description	Example Value
data_quantity_skew_parameter_1	Parameter 1 for the dirichlet distribution	0.5
data_quantity_skew_parameter_2	Parameter 2 for the dirichlet distribution	5.0
data_quantity_min_parameter	Minimum number of samples to assign to each client	1
data_quantity_max_parameter	Maximum number of samples to assign to each client	1000

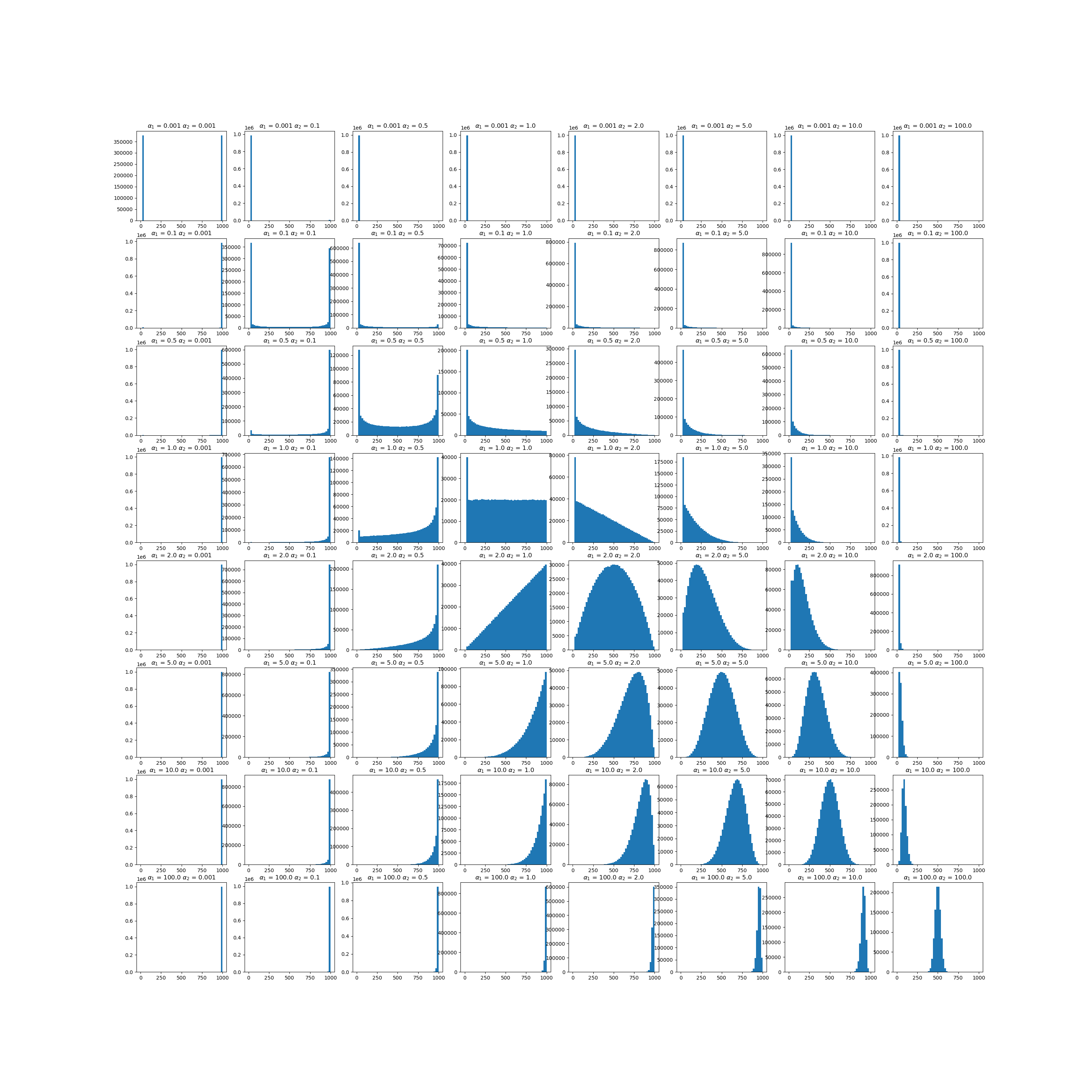

Example distributions

Adapted from:

Li, Qinbin, Yiqun Diao, Quan Chen, and Bingsheng He. 2022.
“Federated Learning on Non-IID Data Silos: An Experimental Study.”
In 2022 IEEE 38th International Conference on Data Engineering (ICDE). IEEE.
https://doi.org/10.1109/icde53745.2022.00077.
